What Is A Slitter Rewinder Machine? Deep Engineering Logic In Flexible Packaging

A slitter rewinder machine is a high-precision web converting system designed to take a wide master roll of flexible material, slit it longitudinally into multiple narrower ribbons using razor, shear, or burst cutting blades, and simultaneously rewind those ribbons onto individual cores under tightly controlled web tension.

Table of Contents

1. Introduction: Why Slitting Is Not Just "Cutting"

2. What Is a Slitter Rewinder Machine? A Machine Builder's View

3. Tension Control: The Invisible Power Behind Quality Rolls

4. Slitting Blade Systems: Select by Material Type

5. Rewinding: How Roll Structure Affects Downstream Use

6. Conclusion and Engineering Summary

Introduction: Why Slitting Is Not Just "Cutting"

Slitting in industrial web converting is not merely a mechanical cutting operation; it is a complex fluid-mechanical and material deformation process that requires precise web tension management, exact blade shear angles, and active vibration dampening to preserve material integrity.

In high-speed flexible packaging converting, raw materials such as biaxially-oriented polypropylene (BOPP), polyethylene terephthalate (PET), aluminum foil, and heavy paperboards arrive in wide master mill rolls. Converting these master rolls into narrow customer-ready rolls demands far more than pushing a blade through a running substrate. When a wide web travels at linear speeds exceeding 600 meters per minute, micro-vibrations, thermal expansion, static accumulation, and mechanical deflection introduce destructive vectors across the slitting zone. Every flexible substrate possesses viscoelastic properties; under mechanical stress, materials experience localized plastic deformation, micro-fracturing, and thermal stress along the slit edge.

Understanding the slitter rewinder machine requires examining how material behavior under tension dictates slitting quality. If the shear force applied during slitting is improperly calibrated, dust generation, edge burrs, stretch distortion, or micro-cracks develop along the material margin. These microscopic flaws propagate during high-speed unwind operations on downstream printing, pouch-making, or laminating machinery, causing web breaks and unscheduled downtime. Furthermore, improper web stabilization prior to the slitting zone introduces lateral web weave, leading to width variations that exceed strict packaging tolerances.

Modern flexible packaging engineers view slitting as a continuous process of stress isolation. A well-engineered slitter rewinder machine must isolate the unwind tension from the slitting zone, and isolate the slitting zone tension from the rewinding shafts. By establishing distinct web tension zones, the slitter rewinder machine ensures that localized material stretch does not distort the mechanical alignment of the cutting blades. Utilizing an advanced heavy-duty dual shaft slitter rewinder allows convertors to handle high-grammage papers and thin polymer films on a unified chassis without sacrificing cut margin precision or operational throughput.

1. Web Shear Physics and Edge Mechanics

The physics of web slitting involves localized shear stress concentration exceeding the material's ultimate tensile strength. In rotary shear slitting, the upper male blade and lower female blade overlap at a specific horizontal gap and vertical depth. As the web passes through the nip point, the top blade induces localized tensile deformation until shear failure occurs along a clean plane. If the horizontal gap is too wide, the material bends before tearing, resulting in severe edge burrs and cross-directional necking. Conversely, if the gap is too tight, premature blade wear occurs, generating fine metallic particles and edge dust that contaminate food-grade packaging.

2. Micro-Defect Prevention and Material Integrity

Micro-defects along slitted edges serve as stress concentration points when rolls are unwound under high tension in downstream applications. For thin films like 12-micron PET or 15-micron BOPA, edge burrs create microscopic tears that instantly tear open under tension spikes. Effective micro-defect prevention relies on dynamic blade stabilization, precise runout control of the cutter shafts, and active dust extraction hoods placed directly at the slitting point. Minimizing friction-induced heat during the cut is equally critical, as thermal softening along polymer slitted edges creates thicker, bead-like margins that cause roll build-up defects during rewinding.

3. Stress Distribution Dynamics Across the Web Path

As a web travels across guide rollers, internal stress distribution across its width is rarely uniform. Master rolls often exhibit caliper variations, loose edges, or center baggy lanes. An advanced slitter rewinder machine addresses these web anomalies through spreading systems such as bowed rollers, banana rollers, or expanding rubber sleeve rollers positioned upstream of the slitting station. By applying controlled lateral strain to the web, these spreading devices flatten baggy zones and ensure that the substrate enters the slitting blades under uniform planar tension, preventing blade binding and slitting line deviation.

Blade Calibration Principles: Maintaining cut edge quality requires verifying blade shear overlap and clearance settings prior to every high-speed production run. For thin polymer films, set lower female knife clearances to zero clearance with axial spring loading, while maintaining an overlap depth between 0.5 mm and 1.0 mm. For paperboard and heavy laminates, implement a horizontal clearance equivalent to 8% to 10% of the material thickness to facilitate clean shear fracture without excessive tool wear.

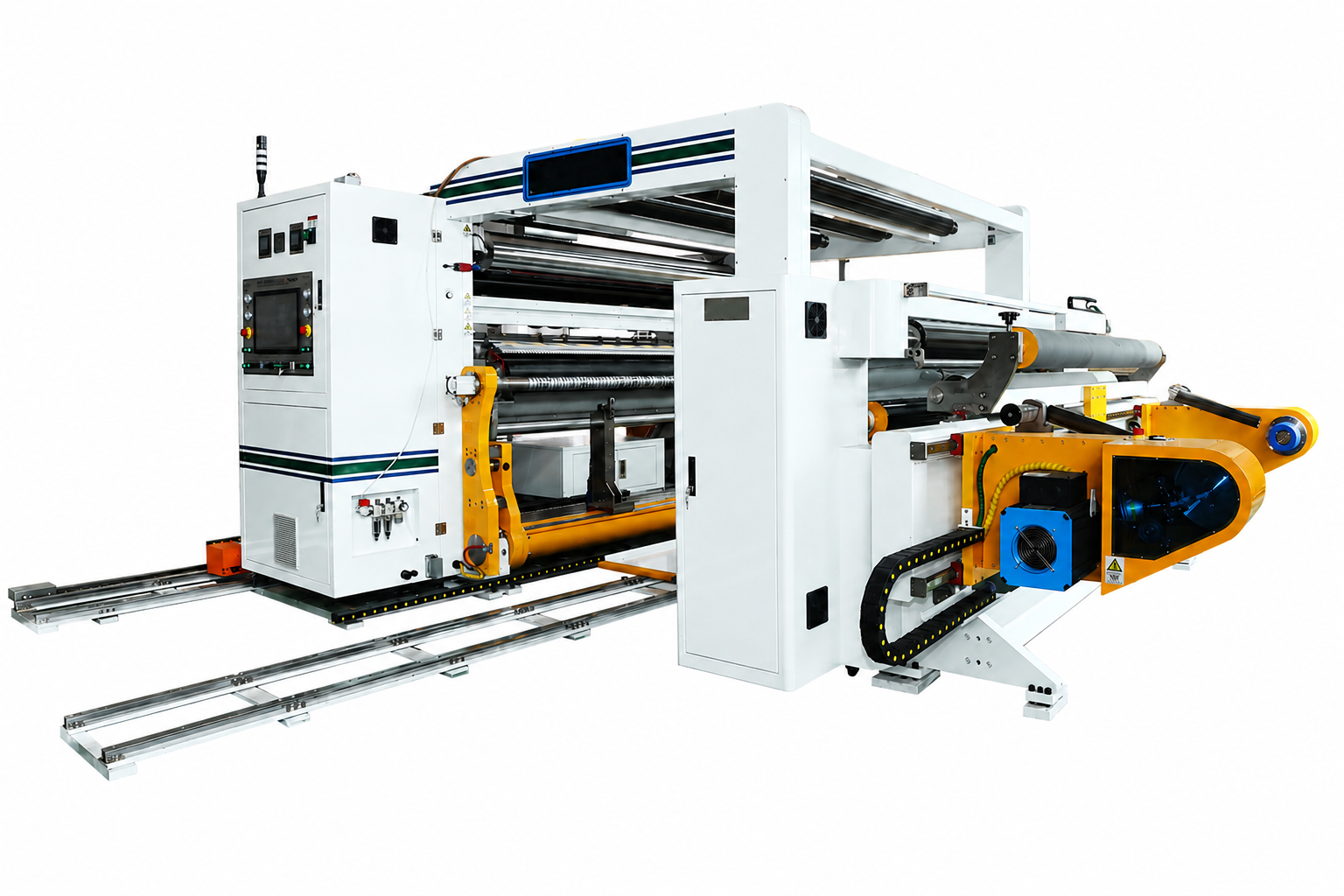

What Is a Slitter Rewinder Machine? A Machine Builder's View

A slitter rewinder machine is a integrated converting system engineered with an unwind unit, web alignment module, tension isolation traction unit, slitting assembly, and dual-shaft or center-surface rewinding mechanisms designed to convert wide parent rolls into precisely slitted finished rolls.

From a machine builder’s structural perspective, a industrial slitter rewinder machine is built around frame rigidity, dynamic balance, and deterministic motion control. The foundational structure typically consists of heavy-gauge solid steel side frames connected by rigid cross-torsion tubes. This structural rigidity is necessary to absorb high-frequency harmonics and mechanical torque generated when running 12,000 kg master rolls at operational speeds up to 600, 800, or 1200 meters per minute. Any structural flexure under heavy load causes shaft deflection, leading to slitting inaccuracy and rewinding misalignment.

The mechanical architecture of a slitter rewinder machine is categorized into four main functional zones: the unwind zone, the web guidance and inspection zone, the central traction and slitting zone, and the rewinding zone. In heavy-duty dual shaft configurations (commonly referred to as A+B shaft systems), finished ribbons are alternately wound on two separate rewind shafts positioned one above the other or in front and back positions. This staggered geometry prevents adjacent slit ribbons from interleaving or overlapping during high-speed winding, allowing narrow rolls to build up to large diameters without edge friction between neighboring rolls.

European packaging converters and global high-tier manufacturers prioritize specific engineering parameters when evaluating slitter rewinder machine designs. Chief among these priorities is total automation in tool setup and core positioning, energy recovery systems during deceleration cycles, and robust PLC integration capable of handling numerous control nodes. High-end machine designs incorporate real-time industrial Ethernet communications linking digital servo drives, precision load cells, laser core positioning devices, and automatic knife positioning assemblies. Employing a robust heavy-duty dual shaft slitter rewinder machine platform ensures that machine vibration remains well below threshold limits, maintaining noise levels below 70 dB(A) even during maximum speed operations.

1. Heavy-Duty Unwind Architecture and Hydraulic Loading

The unwind station must securely support massive parent rolls while providing precise web unwinding under varying braking torques. Modern heavy-duty slitter rewinder machines utilize shaftless floor-pickup unwind arms powered by synchronized hydraulic cylinders. This design allows operators to load master rolls up to 1800 mm in diameter directly from the floor without overhead cranes. The unwind chucks are mounted on heavy linear guide slides, accommodating varying roll widths from 1400 mm up to 2700 mm. Integrated pneumatic or hydraulic disk brakes, or regenerative servo motors, supply the necessary counter-torque to maintain target unwind web tension.

2. Precision Web Path, Tracking, and Inspection Modules

After leaving the unwind roll, the web passes through an Edge Position Control (EPC) or Line Position Control (LPC) system equipped with high-resolution optical or ultrasonic sensors. The sensor detects web edge displacement and signals an electromechanical actuator to shift the entire unwind frame laterally, correcting misalignment in real time. The web path features low-inertia, hard-anodized aluminum guide rollers dynamically balanced to Class G2.5 standards. Low-friction ceramic coatings or non-stick PTFE treatments are applied to guide rollers when handling tacky cold-seal coatings or soft pressure-sensitive adhesive substrates.

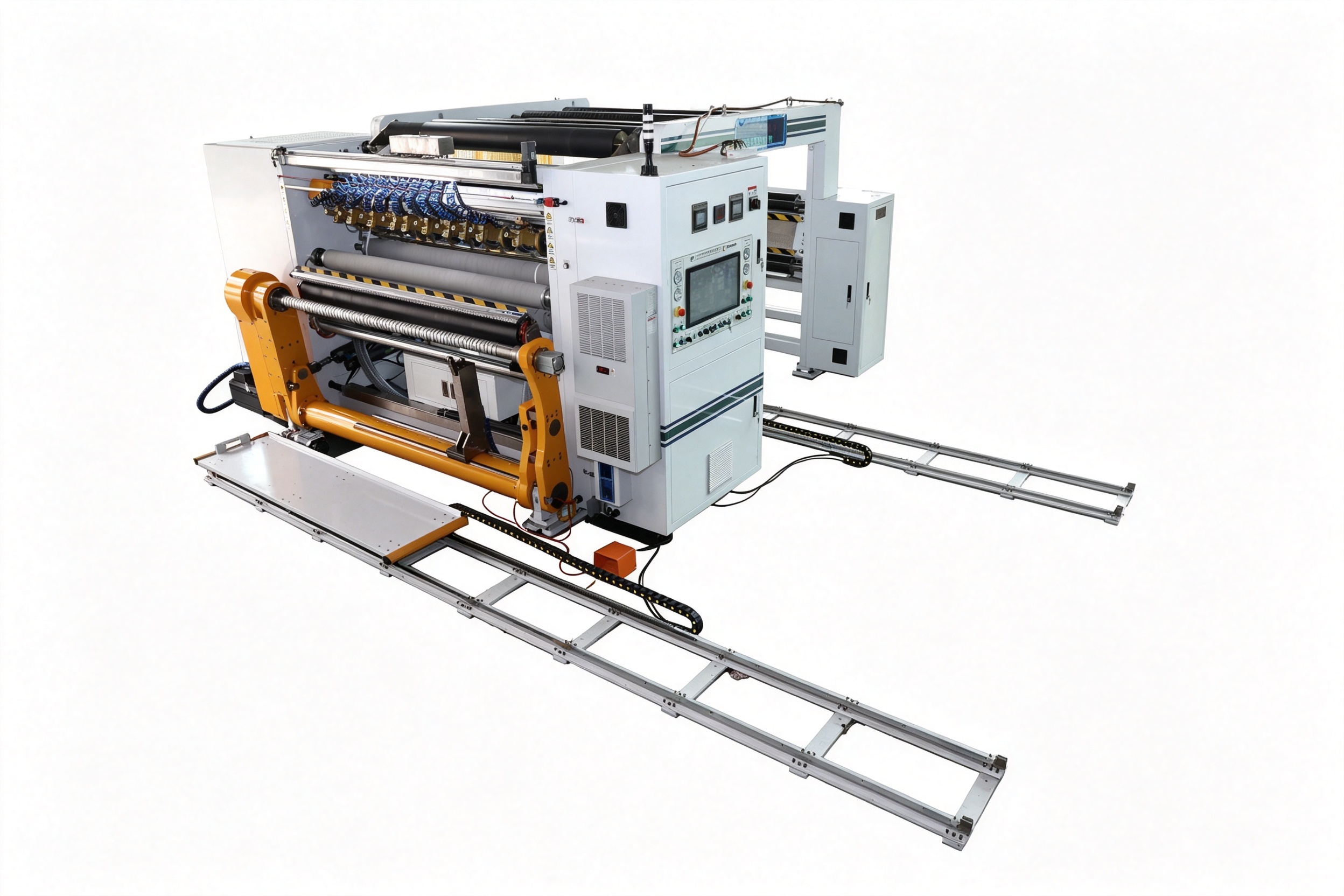

3. Dual Shaft Rewind Dynamics and Structure

In a dual-shaft slitter rewinder machine, slit ribbons are divided between Shaft A and Shaft B. This physical separation provides wide spacing between adjacent ribbons, completely eliminating web interweaving. Differential friction shafts are standard in high-performance dual-shaft machines. These shafts consist of independent internal friction rings driven by central air pressure cores. Each core ring can slip independently, accommodating minor thickness variations across individual slitted strips. Consequently, every slit roll maintains identical winding hardness and tension profile regardless of cross-web caliper variations in the original master roll.

Machine Rigidity Maintenance: To ensure long-term slitting accuracy of ±0.1 mm, inspect main side-frame anchor bolts and linear slide bearing blocks every 1,000 operating hours. Check dynamic runout on cutter shafts using a digital dial indicator; total radial runout must not exceed 0.005 mm to prevent uneven blade wear and vibration during high-speed operation.

Tension Control: The Invisible Power Behind Quality Rolls

Tension control in a slitter rewinder machine is the continuous active regulation of web pulling force across defined physical machine zones, managed through closed-loop load cell sensors, dancer arm potentiometers, and real-time taper tension algorithms.

Tension control is the foundational science governing all successful web converting operations. Without accurate, fast-responding tension control, even the most rigidly constructed slitter rewinder machine will produce defective rolls plagued by telescoping, starring, edge cinching, or soft cores. Flexible webs change physical dimensions when subjected to tensile force; polymers stretch, paperboards elongate, and aluminum foils neck down. Therefore, maintaining consistent mechanical stress per unit of cross-sectional area (N/m or PLI - pounds per linear inch) is essential throughout the unwind, slitting, and rewinding sequences.

The control architecture of a high-end slitter rewinder machine divides the web line into distinct tension zones separated by driven traction nip rollers. The unwind tension zone manages web pull as the master roll diameter decreases from a maximum of 1800 mm down to the bare core. The slitting tension zone maintains an absolute flat, wrinkle-free web surface under precise strain to ensure knife engagement without lateral deflection. The rewind tension zone controls the internal stress profile of the building finished roll, adjusting torque as the rewind diameter grows from the core up to 1500 mm.

Advanced tension management relies on mathematical taper tension curves programmed directly into the machine's central Siemens PLC architecture. As a rewinding roll increases in diameter, its weight, rotational inertia, and leverage ratio expand exponentially. If winding torque is kept constant, the internal tension within outer material layers will squeeze the inner layers, causing core crush or side-ways roll blowout (telescoping). By applying a declining taper tension profile, outer layers are wound with progressively lower tension than inner layers, locking in internal structural stability across the entire roll radius.

1. Closed-Loop Load Cell Dynamics and Dancer Arm Integration

Closed-loop tension regulation employs ultralow-drift load cells mounted directly beneath guide roller bearing blocks. These load cells measure actual web force vectors and feed analog signals to digital servo drives at high sampling frequencies. For materials with high elasticity or severe master roll out-of-roundness, low-friction pneumatic dancer arms with precision potentiometers work in conjunction with load cells. The dancer arm absorbs rapid tension spikes caused by roll eccentricities, providing mechanical buffering while the electrical servo system adjusts unwind braking torque.

2. Taper Tension Curve Algorithms for Flexible Packaging

Taper tension algorithms dynamically lower winding tension as roll diameter increases. The mathematical relationship can be linear, parabolic, or custom-curved depending on substrate behavior. For extensible films like PE and CPP, a steep taper curve (reducing tension by 30% to 50% from core to outer diameter) is required to prevent trapped air from causing layer slippage. For non-extensible substrates like PET and aluminum foil packaging laminates, a shallow parabolic taper curve ensures firm roll structures without inducing inner-layer radial buckling.

3. Regenerative Kinetic Energy Recovery in High-Power Drives

Heavy-duty slitter rewinder machines equipped with high-power servo drives (frequently exceeding 100 kW total system power) incorporate kinetic energy recovery technologies. During rapid deceleration cycles or dynamic braking from speeds up to 1200 m/min, braking servo motors function as electrical generators. Instead of dissipating this kinetic energy as waste heat through heavy resistor banks, regenerative power modules convert braking energy back into clean AC electricity, feeding it into the plant power grid. This system slashes overall energy consumption, delivering up to 99% energy recovery efficiency during deceleration events.

Tension Calibration Tips: Zero-calibrate load cell amplifiers when guide rollers are fully installed but before web threading. Perform a physical calibration check using a certified deadweight hanging over a low-friction calibration belt along the web path to verify that displayed tension values match actual mechanical forces within ±0.5% accuracy.

Slitting Blade Systems: Select by Material Type

Selecting the appropriate slitting blade system razor, shear, or burst cut is dictated by material thickness, substrate hardness, edge finish requirements, and target production speeds.

The heart of every slitter rewinder machine is its slitting assembly. Choosing the wrong blade geometry or cutting mechanism results in excessive dust, blade wear, poor edge quality, or continuous web breaks. Industrial web converting utilizes three primary slitting methodologies: razor slitting, rotary shear slitting, and burst slitting. Each method operates under distinct mechanical principles, requiring specialized holding fixtures, blade materials, and web wrap configurations.

Razor slitting represents the most cost-effective and geometrically simple method, primarily utilized for thin, non-abrasive plastic films such as BOPP, PE, and PVC. The razor blade mounted either directly in free space (razor in air) or penetrating a grooved support roller (razor in groove) slices through the passing web. While razor-in-air provides quick setup, web flutter at high speeds degrades edge accuracy. Razor-in-groove supports the web at the precise point of blade penetration, maintaining stability at higher speeds. However, razor cutting generates friction heat, making it unsuitable for thick or highly abrasive filled polymer webs.

Rotary shear slitting is the gold standard for heavy films, paperboard, aluminum foils, and multi-layer packaging laminates. Shear slitting utilizes two driven circular blades: a top male blade (cut-off knife) and a bottom female blade (anvil ring). The material is severed between the overlapping rotary edges in a true scissor action. Shear slitting handles high speeds up to 1200 m/min and heavy material thicknesses up to 700 microns without thermal degradation. The engineering challenge in shear slitting lies in setting correct axial overlap, side-pressure load, and rake angles across multiple knife stations. Modern high-capacity slitter rewinder machine platforms utilize automated laser core positioning and automatic knife positioning systems to reduce knife set times from hours to under one minute.

To achieve maximum productivity when changing job orders across diverse substrates, incorporating an advanced heavy-duty dual shaft slitter rewinder machine with automatic positioning cuts alignment time for 25 knives down to less than 1 minute, dramatically boosting machine overall equipment effectiveness (OEE).

1. Razor Cut Mechanics and Blade Metallurgy

Razor slitting relies on extreme blade sharpness and low tip-friction coatings. Standard carbon steel razor blades dull quickly when cutting mineral-filled films or printed webs containing titanium dioxide inks. Machine builders utilize solid tungsten carbide, ceramic-coated, or single-crystal diamond-coated blades to extend tool lifespan. Blade angle relative to web entry is typically set between 45 and 60 degrees. Incorrect blade entrance angles lead to web riding, where the film climbs up the blade edge, creating web weave and uneven slit widths.

2. Rotary Shear Geometry and Shear Angle Optimization

Rotary shear geometry requires precise synchronization between top male blade peripheral speed and bottom female anvil speed. Typically, top blades are over-driven by 3% to 5% relative to web speed to pull the material cleanly into the shear point. The side pressure (cant angle) between top and bottom blades must be tuned: excessive side pressure causes rapid blade wear and chipping, while insufficient side pressure allows thin webs to fold between blades, producing jagged, burred edges.

3. Automatic Knife Positioning Innovations and Setup Automation

Manual knife setup on wide slitter rewinder machines with 20 to 50 slitting tracks is labor-intensive and prone to human measurement error. Modern automated knife positioning systems utilize motorized carriage assemblies mounted on high-precision linear ball screws. guided by optical sensors or magnetic encoders, the motorized carriage positions individual top and bottom blade holders to target positions within ±0.05 mm accuracy. Laser alignment beams project crosshair positions along core lock locations, ensuring that rewinding cores align perfectly with slitting cut lines.

Blade System Maintenance Protocols: Inspect rotary shear knife edges under 50x optical magnification every shift to identify micro-chipping early. Clean adhesive residues and film polymers from lower female knife channels using solvent dips and felt wipers; buildup inside anvil grooves alters web seating depth and damages slitting line straightness.

Rewinding: How Roll Structure Affects Downstream Use

Finished roll quality is determined by the rewinding mechanics governing roll density, layer-to-layer air entrapment, and concentric shaft locking, which directly dictate downstream runnability.

The ultimate benchmark of a slitter rewinder machine's performance is the mechanical quality of the rewound roll. A perfectly slitted ribbon is of little value if the finished roll arrives at a customer's plant with loose cores, telescoping profiles, or internal air pockets. Downstream high-speed printing presses and pouch converting lines require flat roll faces, uniform roll hardness from core to outer edge, and absolute roll roundness. The physics of rewinding centers on managing four key factors: Tension, Nip Pressure, Torque, and Speed (commonly referenced as TNTBA parameters in web converting engineering).

Roll density management is achieved through the interaction of winding torque delivered via rewind shafts and nip pressure applied by pneumatically or hydraulically loaded lay-on rollers. As material winds onto the core, a thin boundary layer of air is dragged along by the moving web. If this air layer is trapped inside the roll, it acts as a low-friction lubricant between material layers, causing inter-layer slippage and side-ways roll movement during transport. Driven lay-on pressure rollers press firmly against the building roll surface at the winding point, squeezing out boundary air and compacting the web layers into a dense, geometrically stable roll structure.

Differential friction rewind shafts represent a critical technological leap over legacy solid air shafts. In solid air shafts, all cores locked onto a single shaft rotate at identical RPM and torque. If web thickness varies across the width of a master roll even by 1 or 2 microns thin-lane rolls wind loose while thick-lane rolls wind overly tight. Differential friction shafts overcome this physical limitation by mounting multiple independent friction rings along the shaft. Internal pneumatic bladders push friction pads against the inner rings, delivering uniform torque to every individual winding core regardless of diameter or thickness variations.

1. Differential Shaft Friction Mechanics and Torque Allocation

Differential friction rings utilize precision ball-lock or expander-leaf mechanisms to hold the inside of paper or plastic cores securely. The internal core shaft rotates slightly faster than the winding roll core speed. Controlled compressed air inside the shaft presses friction elements against the internal dynamic surfaces of the rings, converting speed differentials into precise winding torque. Because each slit strip relies on its dedicated friction ring, each rewound roll achieves identical radial tension regardless of cross-web film caliper fluctuations.

2. Inter-Layer Air Entrapment Dynamics and Lay-On Roll Configurations

Air entrapment during high-speed rewinding above 600 m/min can destroy roll structure if unmanaged. Lay-on roller assemblies use low-friction pneumatic cylinders connected to proportional servo valves to exert precise nip force (measured in N/cm) against the roll face. Lay-on rolls can be arranged in individual geometry (one lay-on arm per roll) or full-width geometry (a single continuous lay-on roll spanning all strips). For high-speed flexible packaging, individual lay-on arms are preferred as they conform independently to minor diameter variations across individual winding rolls.

3. Downstream Converting Optimization and Defect Elimination

Downstream processing equipment demands rolls free of structural defects. Defects like starring (patterned radial buckling visible on roll sides) stem from winding inner layers too loosely and outer layers too tightly. Cinching (inter-layer slippage causing internal web scuffing) occurs when rapid braking torque is applied to rolls with poor inter-layer friction. By establishing correct taper tension profiles and differential torque settings on the slitter rewinder machine, converters eliminate these defects, ensuring high-speed unwind performance on customer equipment without web snaps or telescoping.

Rewind Shaft Maintenance Protocol: Clean differential friction shaft surfaces weekly using lint-free cloths and clean isopropyl alcohol to remove airborne adhesive dust and core paper fibers. Check internal pneumatic bladder pressure tubes for micro-leaks using pressure decay tests; air leaks cause inconsistent ring slip friction and uneven roll density across slitting tracks.
