Industrial slitting techniques represent the cornerstone of flexible packaging, plastic film conversion, foil processing, and specialty paper manufacturing. Selecting between razor, shear, and score slitting methodologies directly dictates edge quality, dust generation, thermal degradation, and web tension dynamics on high-speed slitter rewinder equipment. Proper knife geometry, precise penetration depth, differential winding shafts, and closed-loop tension regulation are paramount to achieving uniform web tension profiles and defect-free finished rolls.
Introduction to Slitting Methods
The Mechanics of Razor Slitting
The Principles of Shear Slitting
Tension Control Systems and Winding Profiles
Slitting methods in flexible material processing categorize into razor slitting, shear slitting, and score slitting, each utilizing distinct mechanical stresses and tool configurations to sever moving webs on a slitter rewinder. Selecting the optimal slitting technology depends strictly upon material tensile modulus, yield strength, thermal sensitivity, web speed, and acceptable edge deformation tolerances.
In web converting industries, the process of web separation is an essential mechanical operation where continuous wide-format substrate rolls are slit into narrower lanes and subsequently rewound onto separate cores. The modern industrial slitter rewinder operates as a precision system integrating unwinding, edge guiding, slitting blade geometry, tension regulation, and dual or single shaft rewinding. The selection of the slitting method influences not only the edge profile of the converted rolls but also dust generation, blade wear rate, web stability, and downstream converting efficiency. Understanding the fundamental physical mechanics of each method is necessary to optimize process reliability across flexible packaging films, aluminum foils, paperboards, and technical non-wovens.
Primary converting parameters dictate that material properties must align precisely with blade kinematics. For thin, highly orientated polymeric films such as biaxially oriented polypropylene (BOPP), polyethylene terephthalate (PET), and cast polyethylene (CPE), blade friction and sharp tip penetration are paramount. Conversely, multi-layer laminates containing metallic foils or abrasive inorganic fillers require robust shear force distribution to prevent edge delamination and blade tip micro-chipping. Material mechanical responses under rapid localized shear loading govern whether a clean fracture occurs or if excessive plastic deformation causes burrs, lip formation, or edge stretching. Engineering decisions regarding slitter rewinder configuration must balance operational setup time, blade longevity, dynamic speed capabilities, and maintenance overhead.

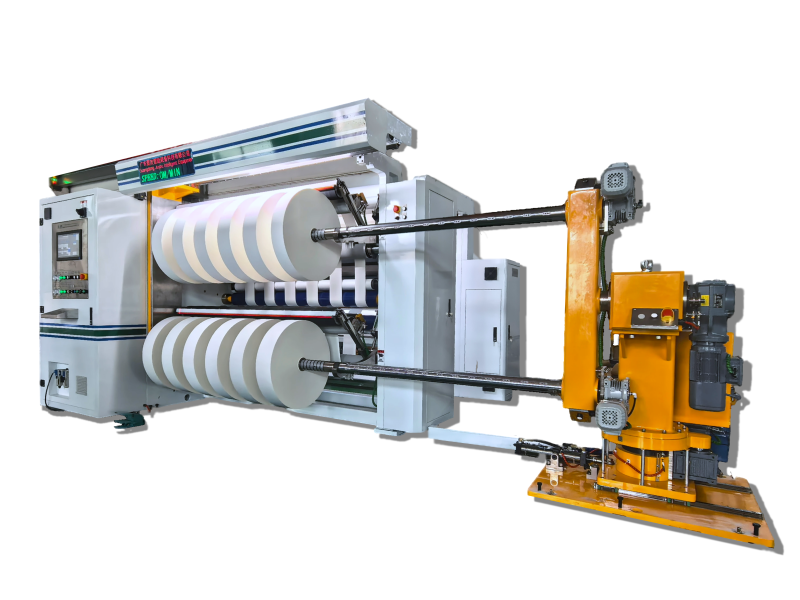

Furthermore, contemporary automated web converting lines demand high consistency across varying web widths and line speeds up to 500 meters per minute or higher. The integration of modern dual-shaft rewinding configurations equipped with differential friction shafts ensures that individual rewound roll tensions remain uniform despite slight cross-web gauge variations. For operations handling diverse packaging films, deploying a versatile flexible dual shaft slitter rewinder machine allows quick transition between razor slitting and shear slitting modes while maintaining extreme web tension fidelity. The structural rigidity of the machine frame, knife positioning accuracy, and vibration damping capabilities collectively define the maximum threshold of slit edge cleanliness obtainable during continuous production cycles.
Slitting Method | Primary Cutting Principle | Typical Substrate Compatibility | Slitting Speed Capability | Tooling Wear Factor |
Razor Slitting | Penetration & continuous wedge splitting | Thin films (BOPP, PET, PE), light foils | Moderate to High (up to 400 m/min) | High (blade tip dulling) |
Shear Slitting | Scissoring action via top/bottom circular knives | Paper, multi-layer laminates, thick foils, heavy polymers | Very High (up to 800+ m/min) | Low to Moderate (hardened steel/carbide) |
Score (Crush) Slitting | Crushing contact against hardened anvil roll | Non-wovens, foam, rubber, pressure-sensitive tapes | Moderate (up to 300 m/min) | Moderate (anvil surface fatigue) |
Operating Principle and Setup Calibration: Ensure that all slitting blade mountings undergo regular dynamic balance testing and alignment verification. Micro-misalignments between top and bottom knife shafts in shear systems introduce irregular side thrust forces, accelerating blade edge degradation and generating metallic particulate contamination on the moving web.
Razor slitting relies on a fixed, stationary razor blade penetrating a moving web to induce localized tensile failure and wedge-driven separation. It operates in two primary mechanical configurations—razor-in-air and razor-in-groove—offering low-cost tooling and minimal setup times for thin plastic film applications on a slitter rewinder.
The mechanics of razor slitting involve forcing a sharpened stationary blade edge through a moving web. As the substrate advances against the razor edge, stress concentrates sharply at the blade tip. When the localized stress exceeds the ultimate tensile strength of the polymer matrix, continuous fracture initiates ahead of the blade tip. The slitting process is thus a combination of sharp crack propagation and sliding wedge friction along the blade facets. Because the blade remains stationary, friction generates localized thermal energy at the contact point. In heat-sensitive films such as low-density polyethylene (LDPE) or unoriented polypropylene, excessive frictional heat can melt the polymer along the cut edge, forming an enlarged bead known as edge lip or weld beads. This lip creates uneven roll building during rewinding, causing stretched edges or web tracking distortions.
To control thermal buildup and web deflection, converters utilize two distinct geometry modes: razor-in-air and razor-in-groove. In razor-in-air configurations, the web travels supported only by upstream and downstream idler rollers, with the razor blade penetrating the web in an unsupported span. While razor-in-air provides maximum setup flexibility and minimum changeover downtime, web flutter can cause cut width fluctuations and edge raggedness if web tension drops. In razor-in-groove configurations, the blade penetrates into a slotted grooved roller over which the web is wrapped. Wrapped support eliminates web flutter, holds the film flat against the roll surface, and produces significantly cleaner slit edges with higher dimensional consistency. Razor-in-groove setups are preferred when running lightweight films at higher slitter rewinder velocities where air entrainment might otherwise destabilize the web.
European converting operations and high-precision packaging facilities prioritize blade material composition and coating technologies to extend blade service life. Industrial razor blades utilize ceramic coatings, tungsten carbide substrates, or solid industrial sapphire edges. Ceramic-coated carbon steel blades reduce friction coefficients significantly, lowering heat generation and resisting wear caused by inorganic additives like titanium dioxide fillers or silica anti-block agents. Machine design features such as oscillating razor blade holders gradually translate the blade across the web width, spreading wear across a wider segment of the cutting edge and extending blade life by up to 300 percent. Incorporating advanced blade positioning features into a robust high performance slitter rewinder equipment reduces downtime associated with frequent manual blade indexing while protecting film web purity.
Component / Parameter | Technical Specification / Standard | Functional Role in Razor Slitting |
Razor Blade Substrate | Tungsten Carbide / Ceramic-Coated Stainless Steel | Provides extreme hardness (70+ HRC) to withstand abrasive film additives. |
Blade Thickness | 0.15 mm to 0.38 mm (Standard Industrial) | Minimizes web displacement and reduces wedge-action edge deformation. |
Penetration Depth | 0.5 mm to 1.5 mm into grooved roll | Ensures full web severance without inducing blade chatter or deflection. |
Groove Width (in-groove) | 0.8 mm to 1.2 mm precision slotted | Supports web perimeter immediately adjacent to slitting plane. |
Blade Attack Angle | 15° to 45° relative to web plane | Controls ratio of downward piercing force to forward tearing force. |
Maintenance and Quality Tips: Inspect razor blade edges under optical magnification at regular shifts. Micro-nicks in the blade edge lead to continuous web hairing or angel hair generation. When slitting clear optical films, establish a scheduled blade rotation policy based on linear meters processed rather than waiting for visual roll edge defects.
Shear slitting employs a scissor-like mechanical cutting action utilizing two rotating circular blades—a powered male top knife and a powered or driven female bottom knife—that overlap at a precise intersection angle. This method provides the cleanest edge profile and lowest dust output for thick films, heavy paper, multi-layer laminates, and metallic foils on a slitter rewinder.
The physics of shear slitting rely on continuous rotary shear stress applied at a localized cutting point known as the nip or crossover region. The top circular knife, often ground with a bevel edge, contacts the flat shoulder or square edge of a bottom female ring. As the web passes between these two overlapping circular blades, the shear stress overcomes the ultimate shear strength of the material, shearing the material cleanly without tensile tearing or thermal melting. Shear slitting creates minimal edge debris, eliminates weld bead formation, and produces vertical, burr-free roll edges. Consequently, shear slitting is the dominant technology for thick polymer webs (greater than 100 microns), aluminum foil packaging, flexible paperboard, and complex multi-layer barrier laminates.
Achieving ideal shear slitting quality requires precise adjustment of three primary geometrical variables: horizontal side force (blade loading), vertical overlap (depth of engagement), and cant angle (toe angle). Horizontal side force forces the top blade side facet firmly against the bottom knife shoulder. If side force is insufficient, the material slips between the blades, creating folded or frayed edges; excessive side force causes premature tool wear, blade edge chipping, and friction overheating. Vertical overlap determines how deeply the top blade intersects the plane of the bottom knife. Typically set between 0.5 mm and 1.0 mm depending on material thickness, correct overlap prevents web lift-out while maintaining structural blade stability. The cant angle—a slight rotational offset usually between 0.25° and 1.0°—ensures that knife contact occurs exclusively at a single point ahead of the cut center, preventing rear blade rubbing against the newly slit edge.

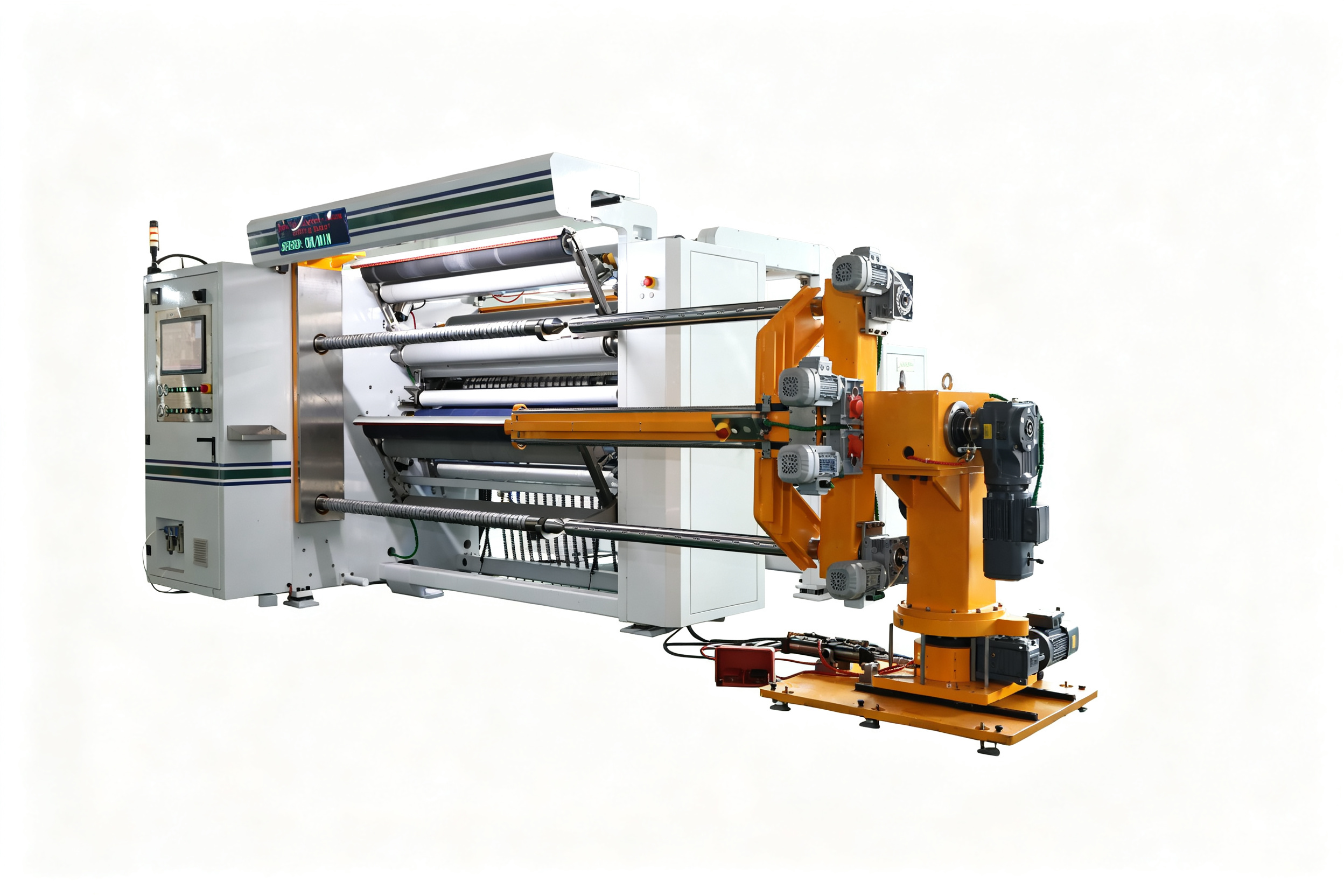

From an engineering perspective, modern converters favor automatic pneumatically actuated top knife holders. Pneumatic holders allow individual blade units to regulate side thrust pressure with precision via regulated air lines, eliminating manual operator error. Furthermore, when converting multi-layer structures containing aluminum foil and polyethylene, European packaging converters require rigid knife support bridges to eliminate deflection across wide machine widths. The structural stability integrated within an industrial duplex slitter rewinder machine unit ensures that top and bottom knife shafts maintain perfect parallelism even under high web speeds and heavy web tension loads, guaranteeing consistent web width tolerances across all slitted lanes.
Shear Setup Parameter | Optimal Setting Range | Effect of Improper Adjustment |
Cant Angle (Toe Angle) | 0.25° to 0.75° | Too low: Double cutting / web burrs. Too high: Accelerated blade shoulder wear. |
Vertical Overlap | 0.5 mm to 1.2 mm | Too low: Material bypass / uncut web. Too high: High friction / blade chipping. |
Pneumatic Side Pressure | 1.5 bar to 3.0 bar | Too low: Separation of blades under load. Too high: Excessive heat / rapid dulling. |
Top Blade Geometry | Single bevel (45°) or Double bevel | Incorrect bevel angle causes uneven lateral push on slit material edge. |
Speed Differential | Top knife 1% to 3% faster than web | Synchronous matching prevents web bunching or dragging at slitting nip. |
Maintenance and Operational Tips: Frequently clean the female knife sleeve grooves using non-abrasive solvent wipers to prevent dust accumulation. Buildup of adhesive residue or paper dust on female knife shoulders shifts the blade intersection point laterally, altering the effective overlap and ruining slit edge squareness.
Tension control systems regulate unwinding and rewinding web forces through closed-loop feedback algorithms, dynamic braking, load cell load sensing, and differential friction rewind shafts on a slitter rewinder. Precise web tension profiling prevents film stretching, core crushing, interweaving, starburst defects, and telescope distortion in finished rewound rolls.
Substrate slitting is only one half of the web converting equation; successfully winding the slit lanes into high-density, defect-free rolls requires sophisticated mechanical and electrical control systems. As material travels from the unwind stand through the slitting section to the rewind shafts, web tension must be kept strictly within precise operating windows. If unwind tension fluctuates, web tracking shifts laterally, causing web width errors at the slitting station. Load cell rollers installed upstream and downstream of the slitting zone continuously measure total web force, feeding real-time signals to vector AC drive motors or pneumatic brake systems. Closed-loop PID controllers dynamically adjust torque output to maintain setpoint tension accurate to within fractions of a Newton across full speed acceleration and deceleration ramps.
Rewinding thin flexible substrates introduces complex core building physics. As a rewound roll increases in diameter, its volume and weight increase exponentially while the angular velocity decreases. If constant torque is applied to the rewind shaft throughout roll build-up, the internal radial stress inside the growing roll increases dramatically. This buildup of internal stress leads to classic winding defects: core crushing, inner layer bucking, gauge bands, or side telescoping. To prevent these failures, modern converters employ taper tension profiles. A taper tension algorithm systematically reduces rewinding web tension as the roll diameter increases, following linear, parabolic, or custom programmed decay curves. Lowering tension on the outer layers cushions the inner layers, maintaining uniform internal hardness and flat roll faces.
Cross-web caliper or thickness variations inherent to plastic film extrusion present another severe rewinding challenge. When converting wide webs into multiple slit strips on a single solid shaft, thicker lanes build roll diameter faster than thinner lanes. Consequently, thicker strips become over-tensioned and stretch, while thinner strips slacken, drop down, or interweave with adjacent rolls. The ultimate solution implemented on advanced machines is the differential friction rewind shaft. Differential shafts utilize independent friction rings slid over an internal air bladder. Slipping independently according to individual roll torque requirements, each rewind core receives identical, controlled winding torque regardless of minor diameter differences across the web. Modern converters rely on these advanced shaft designs to process ultra-thin barrier films with total confidence and zero roll-to-roll scrap.
Winding Defect | Visual / Physical Manifestation | Primary Root Cause | Engineering Corrective Action |
Telescoping | Lateral misalignment of inner core layers sliding out. | Insufficient winding tension or excessive taper drop. | Increase initial starting web tension; lower taper percentage slope. |
Starburst / Radial Cracks | Patterned internal radial fracture lines on roll face. | High outer roll tension compressing soft inner core layers. | Apply aggressive taper tension profile (e.g. 30% to 50% decay). |
Gauge Band Ridges | Hard circumferential raised ridges along roll width. | Localized film thickness variation stacking on single lane. | Deploy web oscillation before slitting; use differential friction shafts. |
Interweaving | Slit strip edges overlap or tangle during winding. | Web flutter or improper lay-on roll contact pressure. | Optimize lay-on roller pneumatic loading; reduce free span distance. |
Tension Calibration Strategy: When programming taper tension for tension-sensitive films such as thin PE or extensible non-wovens, establish starting tension (TNT: Tension, Nip, Torque) based on substrate elastic limit. Perform roll hardness testing across the entire diameter build using an electronic Schmidt hammer to ensure smooth, monotonic decay curves without sudden drop-offs.
Mastering industrial slitting techniques requires a precise alignment of substrate material science, cutting blade mechanics, dynamic web guidance, and sophisticated closed-loop tension regulation. Whether deploying razor slitting for ultra-thin films, rotary shear cutting for heavy paperboard laminates, or score slitting for pressure-sensitive non-wovens, matching the correct physical separation method to the mechanical properties of the web is mandatory. Equipment stability, precision pneumatic controls, hardened anvil surfaces, and advanced differential friction rewinding technologies form the foundation of high-speed, zero-defect flexible material conversion across global industrial markets.
