Selecting the optimal Slitter Rewinder for industrial processing requires a balanced evaluation of slitting methodologies, tension control mechanics, blade configurations, and operational speed parameters to ensure seamless material converting, minimal web downtime, and high line throughput.
Understanding Slitter Rewinder Fundamentals
Primary Classification of Slitting Methods
Key Technical Specifications to Evaluate
Essential Features of Advanced Systems
Step-by-Step Selection Process for Businesses

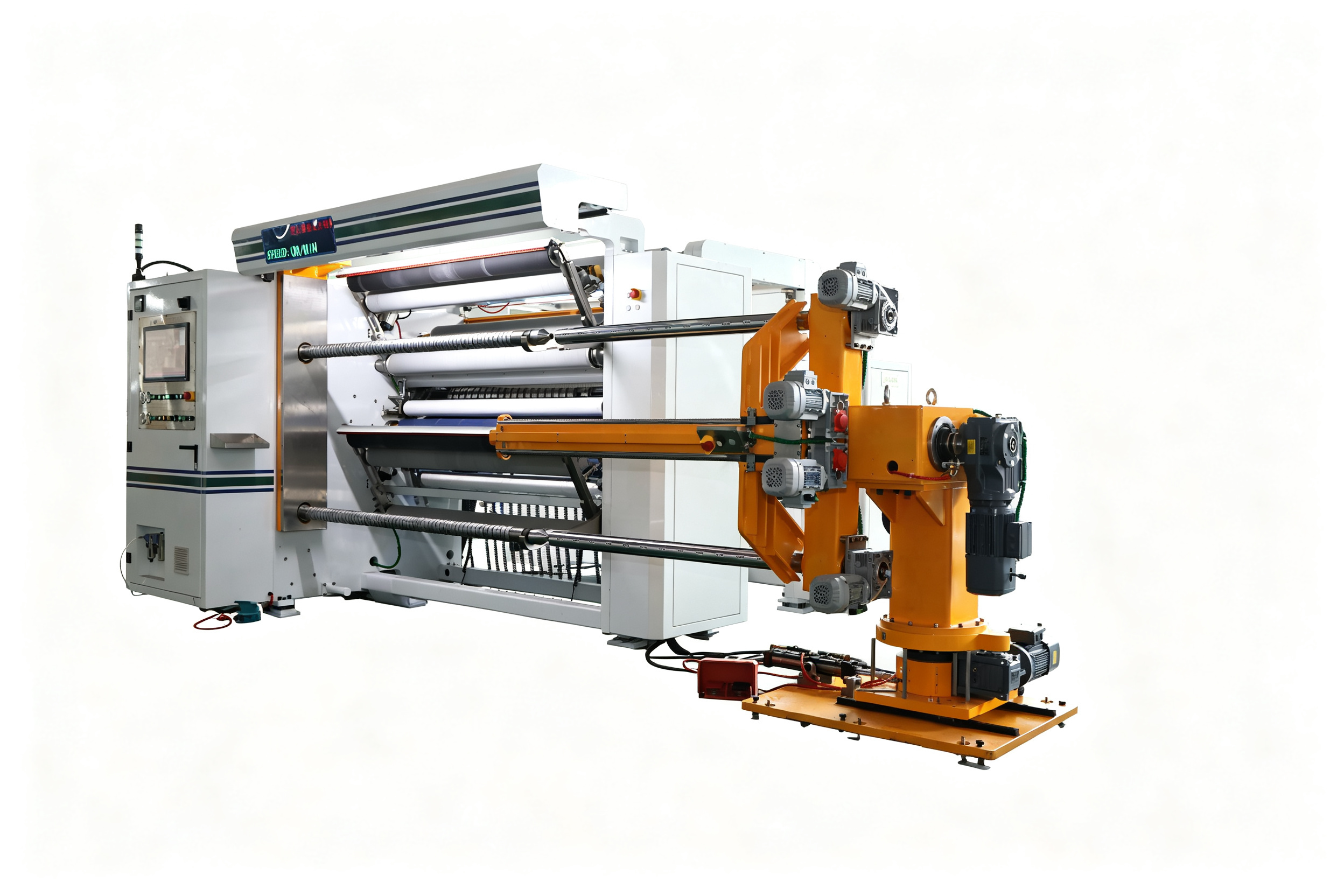

A Slitter Rewinder is a critical piece of industrial equipment designed to unroll large master rolls, slit the web into specific narrow widths using specialized blades, and rewind the material into precisely tensioned finished rolls.
The fundamental converting process begins at the unwinding station, where a large parent roll or master roll is mounted onto a mechanical shaft or shaftless chuck system. As the substrate moves through the web guiding system, electronic sensors continuously monitor edge or center position to maintain precise alignment. Maintaining proper tension throughout this stage is paramount, as fluctuations can lead to material stretching, wrinkling, or gauge variance during subsequent processing steps.
Once aligned, the continuous web enters the slitting section, where precise mechanical cutting mechanisms—such as shear blades, razor knives, or rotary score cutters—divide the wider master roll into designated sub-widths. The tension across individual lanes must remain constant to ensure clean, burr-free edge profiles. Industrial operations heavily rely on advanced processing machinery such as a Flexible Dual Shaft Slitter Rewinder to manage complex substrate properties, achieve consistent slit widths, and deliver stable finished rolls.
Finally, the slit continuous webs are routed to the rewinding section. Dual-shaft differential rewinding systems utilize individual friction rings or expansion air shafts to ensure each roll receives customized torque based on its specific diameter and caliper variation. This prevents problems like telescoping, web breakage, or uneven roll hardness across the entire rewind shaft.
System Component | Primary Function | Technical Impact on Web Processing |
Unwind Stand | Holds master parent roll and provides initial web brake control. | Maintains primary unwind tension and web stability. |
Automatic Web Guide | Corrects sideways movement via ultrasonic or optical sensors. | Ensures high slitting accuracy and proper edge registration. |
Slitting Station | Houses shear, razor, or score blades to cut continuous material. | Determines edge quality, dust formation, and slit width precision. |
Differential Rewind Shafts | Controls individual tension across multiple narrow slit rolls. | Prevents core slippage, roll interleaving, and uneven hardness profiles. |
Working Principle: The core mechanical principle relies on active loop tension control managed through closed-loop feedback systems using load cells and dancer arms. When the unwind brake modulates back torque, dynamic speed controllers synchronize the main traction drive and differential rewind motors, maintaining constant stress per unit area across diverse material gauge profiles.
The three primary slitting methods used in converting operations are shear cutting, razor slitting, and score or burst slitting, each selected based on material characteristics and edge finish requirements.
Shear slitting operates using a rotary male top blade interlocking with a female bottom anvil ring, acting similarly to a motorized pair of scissors. This technique provides the highest quality edge profile and minimal dust generation, making it ideal for flexible packaging films, laminated foils, thick papers, and non-woven substrates. Achieving optimal performance requires precise alignment of overlap depth, side pressure, and shear angle between the upper and lower cutter assemblies.
Razor slitting utilizes stationary or oscillating razor blades positioned in the web path. Substrates can pass through the blade suspended in air (slitting-in-air) or guided through a grooved support roll (slitting-in-groove). While razor slitting represents a cost-effective setup with minimal tooling expense, it is primarily constrained to thin plastic films such as polyethylene, polypropylene, and PET. High line speeds can cause rapid blade wear, friction heating, and edge deformation on heavy-gauge or abrasive web materials.
Score slitting, also known as crush slitting, presses a hardened circular knife with a rounded edge against a hardened steel anvil roll. The material is pinched and severed by concentrated mechanical pressure. This method is typically employed for rubber sheets, coarse non-wovens, pressure-sensitive tapes, and textile composites. However, it generally creates more material dust and lower edge precision compared to rotary shear mechanisms.
Shear Slitting Method: Offers high-speed operation, precise cut quality, low dust creation, and versatility across multi-layer flexible substrates.
Razor Slitting Method: Simple setup, economical tooling requirements, ideal for thin unoriented plastic films, but limited by thermal wear on thick substrates.
Score Slitting Method: Quick width setup times, excellent for dense textiles and adhesives, but produces rougher edge profiles and potential dust accumulation.
Slitting Method | Suitable Substrates | Edge Quality | Tooling Complexity |
Shear Cutting | Papers, foils, multilayer laminates, films | Superior / Clean | High (Male/Female pairing) |
Razor Slitting | Thin PE, OPP, PET, PVC films | Moderate / Clean | Low (Standard blades) |
Score/Crush Cutting | Non-wovens, foam, rubber, heavy textiles | Coarse / Compressed | Medium (Hardened anvil) |
Operational Tip: Always match blade geometry and rake angles to the specific thickness and tensile strength of the substrate. For instance, tungsten carbide shear knives significantly extend blade life when processing abrasive materials, while Teflon-coated razor blades lower friction coefficient when cutting sticky pressure-sensitive adhesive webs.
Evaluating key technical specifications such as mechanical speed, slit width range, maximum unwind/rewind roll diameters, and tolerance limits is crucial for choosing the right Slitter Rewinder for your production goals.
When selecting a machine, engineering teams must evaluate the full spectrum of operational parameters. High-speed production lines require robust mechanical frames to suppress vibration and maintain precision. Modern equipment, including a high-speed dual shaft Slitter Rewinder, offers production speeds up to 600 m/min, with options reaching 800 m/min, enabling massive throughput gains for large-scale converters.
Material range adaptability is equally important. A versatile machine must process substrates spanning grammages from 10 to 400 gsm and thickness ranges from 12 to 700 microns. Machine design must balance structural rigidity with sensitive tension control to prevent web breakage on ultra-thin 12-micron films while maintaining sufficient torque to handle thick 700-micron paperboards.
Furthermore, evaluating physical dimensions—such as roll diameters and total machine weight—ensures physical compatibility with existing plant layouts and material handling equipment. Heavy-duty machine structures, often weighing over 10,000 kg, provide the structural damping necessary to maintain high cutting accuracy within tight tolerances, even at maximum mechanical speed.
Specification Parameter | Standard Technical Value | Operational Impact |
Roller Working Width | 1300 mm – 1700 mm | Dictates maximum master roll width capacity. |
Max. Unwind Roll Diameter | 1500 mm | Allows long continuous production runs between roll changes. |
Max. Rewind Roll Diameter | 850 mm | Determines maximum finished roll size. |
Slitting Width Range | 50 mm – 1650 mm | Specifies narrowest and widest finished slit widths. |
Slitting Accuracy | ±0.1 mm | Guarantees tight dimensional precision on finished products. |
Mechanical Operating Speed | 600 m/min (Option: 700/800 m/min) | Direct driver for daily production capacity. |
Applicable Material Thickness | 12 – 700 microns (10 – 400 gsm) | Broad substrate capability for flexible film and paperboard. |
Total Machine Weight | Approx. 10,500 KG | Structural mass suppresses vibration at high operating speeds. |
Advanced features like automated knife positioning, laser core positioning, kinetic energy recovery systems, and integrated PLC control systems drive modern converting efficiency and lower operational costs.
Automated systems dramatically reduce job changeover downtime. Upgrading to a fully automatic knife positioning system reduces the manual alignment time for 25 knife assemblies from nearly 25 minutes down to less than 1 minute. Automated laser core positioning systems instantly project visual target lines along the rewind shaft, eliminating human measurement error and preventing misalignment between slit lanes and core placement.
Modern control architecture relies heavily on industrial PLCs. Industrial control networks utilizing over 100 control nodes continuously monitor real-time variables like tension feedback, motor speed, diameter calculations, and web position. This ensures dynamic, micro-second adjustments that preserve web integrity during rapid acceleration and deceleration cycles. Integrating a precision industrial Slitter Rewinder with PLC control helps maintain consistent production yields and precise web guiding across long manufacturing shifts.
Sustainability and energy management are key priorities in modern machine design. Implementing a Kinetic Energy Recovery System (KERS) allows the machine to capture regenerative electrical energy generated during main drive deceleration. This energy is fed back into the plant grid or reused during startup cycles, delivering significant energy savings during intensive production runs.
Advanced Technology Module | Key Functional Performance | Business Benefit |
Automatic Knife Positioning | Sets 25 knives in under 1 minute | Increases net operational uptime and reduces setup errors. |
Laser Core Positioning | Projects optical target lines for manual or automatic loading | Ensures perfect roll core alignment with narrow slitting lanes. |
Kinetic Energy Recovery | Up to 99% regenerative efficiency during braking cycles | Lowers total facility electrical power consumption. |
Siemens PLC Network | Integrates >100 control nodes over high-speed fieldbus | Delivers real-time diagnostic reporting and smooth tension control. |
A structured selection process involves analyzing substrate characteristics, defining throughput targets, evaluating machine automation, and verifying long-term support capabilities.
Selecting the right converting machinery requires a clear methodology to ensure short-term requirements match long-term operational goals. Businesses should assess their material mix, roll changeover frequency, floor space, electrical infrastructure, and labor skill levels before making capital commitments.
Audit Substrate Profiles and Material Specifications: Map out all current and future materials, detailing thickness variations (12–700 microns), surface friction, yield strength, and web widths.
Calculate Target Operational Throughput: Determine required daily yield in linear meters to decide whether a baseline 600 m/min speed profile or an upgraded 800 m/min setup is necessary.
Analyze Machine Setup and Automation Requirements: Calculate total daily job changeovers; high-mix low-volume operations benefit immensely from automatic knife and laser core positioning systems.
Verify Mechanical Construction and Footprint Compatibility: Ensure the facility floor can accommodate machine weights around 10,500 kg and physical dimensions such as 4200 x 4000 x 2100 mm.
Evaluate Energy Efficiency and Operating Costs: Look for features like Kinetic Energy Recovery Systems and efficient drive motors to minimize continuous utility overhead.
Phase | Core Objective | Evaluation Checklist |
Phase 1: Substrate Analysis | Define material spectrum | Measure film gauge, gsm, coating sensitivity, and master roll weight. |
Phase 2: Speed & Torque | Match drive capacity | Check unwind brake torque, acceleration curves, and max roll diameters. |
Phase 3: Automation ROI | Calculate labor/time savings | Assess payback period for automatic knife vs. manual shaft setup. |
Phase 4: Facility Check | Confirm infrastructure readiness | Check 380V 3-phase power, 6KG air supply, and floor load limits. |
Maintenance Tip: Establish routine preventive maintenance schedules for pneumatic systems, web guide sensors, and knife assemblies. Consistently inspect friction rings on differential shafts for wear, clear dust accumulation near optical sensors, and maintain regulated compressed air pressure at 6 kg/cm² to ensure consistent core clamping and smooth braking performance.
Choosing the right Slitter Rewinder involves evaluating material thickness profiles, required production speeds, cutting methods, and automation levels. By matching your substrate requirements—from 12-micron films to 400 gsm paperboards—with features like automatic knife positioning, advanced tension controls, and energy recovery systems, businesses can maximize operational efficiency, minimize waste, and maintain exceptional finished roll quality.
