The global manufacturing and converting industries rely heavily on the efficient processing of continuous rolls of materials, known as webs. From flexible packaging and paper production to advanced foils and non-woven fabrics, master rolls produced in primary manufacturing stages are often too wide and heavy for direct end-use applications. To transform these massive mill rolls into precise, commercially viable sizes, manufacturers utilize specialized machinery designed to slice and rewound webs with extreme accuracy, ensuring seamless integration into downstream packaging or production lines.
Slitting is a high-precision converting process where a wide master roll of material is cut longitudinally into several narrower rolls, while a slitter rewinder is the industrial machinery designed to unroll the parent web, cleanly slice it into specified widths using advanced blade configurations, and simultaneously rewind the slit strands into tightly controlled, individual finish rolls.
Understanding the physics of web tension, blade dynamics, and structural geometry behind this equipment is essential for optimizing factory throughput and eliminating material defects. The following comprehensive guide details the mechanical operations, blade technologies, and precision engineering principles that define modern high-speed converting systems, providing processing facilities with the technical insights needed to maximize production quality.
| Section | Summary |
| An introduction to Slitting | An overview of the industrial context and operational necessity of material converting processes in modern B2B manufacturing supply chains. |
| What is Slitting? | A deep technical analysis of the mechanical shearing, razor, and score slitting methodologies used to divide wide material webs into narrow strips. |
| What is a Slitter Rewinder? | A breakdown of the structural components, winding methods, and tension control systems that constitute an industrial slitter rewinder machine. |
| Slitting Specialists | An examination of engineering standards, material optimizations, and configuration selections required to maintain precision across different substrates. |
Industrial slitting serves as the critical bridge between bulk primary material manufacturing and specialized downstream product converting, transforming massive master rolls into exact widths required for end-use commercial applications.
Primary manufacturing methods for materials like plastic films, industrial papers, aluminum foils, and non-woven textiles are most efficient when executed at maximum widths. Creating wide master rolls minimizes edge waste and optimizes the output of primary extrusion or milling machinery. However, downstream packaging lines, printing presses, and medical manufacturing equipment require much narrower form factors. Industrial converting steps solve this geometric mismatch by dividing wide rolls cleanly at high speeds.
During high-speed conversion, different materials exhibit distinct mechanical behaviors under stress. Elastic films can stretch and distort, heavy papers can create abrasive dust, and metal foils can tear or deform along the slit edge. Precision industrial systems must be engineered to balance these unique physical traits, stabilizing the web across the entire machine path to prevent horizontal shifting, wrinkles, or structural failure during continuous operations.
The quality of the final slitting step directly impacts the performance of the roll in subsequent automated packaging or labeling machinery. Issues such as uneven edge profiles, incorrect roll tightness, or interleaved layers can cause frequent jams and expensive downtime on end-user production lines. Implementing precise material handling and sharp, accurately positioned cutting mechanisms ensures that every finished roll maintains perfect edge alignment and consistent structural integrity throughout its entire wound length.
Slitting is a high-speed mechanical converting technique that continuously cuts a moving web of material lengthwise into multiple narrower strands using precise blade configurations as the material passes through a specialized processing zone.
Razor slitting utilizes stationary blades positioned directly within the path of the moving web, slicing the material as it passes through. This method can be configured as a razor-in-air setup or a razor-in-groove setup, where the blade penetrates a recessed channel in a support roller beneath the material. Razor cutting is highly economical and ideally suited for thin, non-abrasive substrates such as light plastic packaging films and thin laminates. However, the high friction generates heat quickly, making it less suitable for thick, rigid, or highly abrasive materials that cause rapid blade dulling.
Shear slitting utilizes a two-part rotary blade configuration consisting of a circular top blade (male) and a driven bottom blade (female) that intersect at a precise angle, mimicking the physical mechanism of industrial scissors. The material web is guided between these rotating knives, resulting in an exceptionally clean, burr-free edge profile. This configuration is widely deployed for processing heavy-duty papers, aluminum foils, dense multi-layer composites, and thick plastic materials. Maintaining accurate blade overlap and side-force engagement is essential to prevent edge fraying and minimize blade wear during high-volume production runs.
Score slitting, also referred to as crush slitting, presses a hardened, circular knife with a radiused edge directly against an extremely hard, driven anvil roller under regulated pneumatic pressure. As the web passes between the rotating knife and the anvil, the material is compressed and severed along the contact line. This method is highly effective for uneven or fibrous materials, including non-woven fabrics, heavy textiles, pressure-sensitive adhesive tapes, and coarse sandpapers. While score cutting generates more material dust and slightly rougher edges than shear cutting, its rapid setup times and high durability make it a valuable choice for demanding industrial applications.
| Slitting Method | Best Suited Substrates | Primary Mechanical Advantage | Tooling Wear Rate |
| Razor Slitting | Thin plastic films, light laminates | Low initial setup cost, simple design | High wear on abrasive materials |
| Shear Slitting | Heavy papers, boards, thick foils, laminates | Exceptionally clean edge quality at high speeds | Low to moderate when properly aligned |
| Score Slitting | Non-wovens, textiles, adhesives, rubbers | Fast blade spacing changes, handles uneven webs | High anvil wear over extended periods |

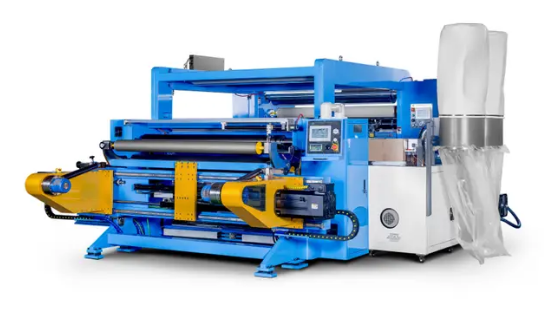

A slitter rewinder is a multi-station industrial machine engineered to unroll a master roll of material, transport the web through a precision cutting zone under rigid tension parameters, and wind the resulting narrow strips into stable individual finished rolls.
The process begins at the unwind station, which securely holds the heavy master roll using mechanical or pneumatic expansion shafts. As the machine accelerates to high operating velocities, an active braking assembly or an integrated regenerative drive motor regulates the release of the material. This setup works in tandem with sensitive dancer rollers or load-cell tension sensors to maintain constant web tension, preventing material stretching, wrinkling, or breaking before it reaches the blades. For operations focusing on high-volume production, integrating an advanced, automated Slitter Rewinder allows facilities to consistently maintain tight processing tolerances and exceptional material stability across variable production speeds.
After leaving the unwind section, the stabilized web enters the slitting section, where it is precisely divided by the knife configuration. The mechanical layout of this section ensures that the material remains perfectly flat and perpendicular to the blades, preventing any lateral tracking errors. Depending on production requirements, operators can adjust blade spacing manually using high-precision spacers or utilize automated, motor-driven positioning systems to rapidly adjust to new width specifications. This precise positioning reduces product changeover times and minimizes edge trim waste.
Once slit, the narrow material strands advance to the rewinding section, where they are rewound onto new cardboard or plastic cores. Choosing the correct rewinding method is critical to ensuring proper finished roll density. Center winding applies torque directly through the rewind shafts, which is ideal for sensitive materials or flexible films that require gentle handling. Surface winding utilizes large, driven drums to rotate the rolls via peripheral contact pressure, which is excellent for building heavy, dense rolls of paper or non-woven fabrics. For complex substrates, utilizing a dual-shaft configuration like the SF-650 Essential Dual-Shaft Slitter Rewinder provides independent tension controls for each winding arm, completely preventing interleaving and guaranteeing excellent roll structure even when processing materials with variable thickness profiles.
Slitting specialists are precision-engineered converting systems designed to maintain strict edge alignment, uniform tension distribution, and scrap-free winding performance across highly demanding industrial substrates.
Even minor variations in the shape or thickness of a master roll can cause the web to wander laterally as it moves through the machine at high speeds. Specialized converting machinery integrates ultrasonic or photoelectric edge sensors that constantly track the position of the web. These sensors send real-time data to motorized guiding frameworks that shift the unwind or intermediate roller base by fractions of a millimeter, ensuring the material enters the cutting knives perfectly straight and maintains narrow width tolerances.
Many laminated or co-extruded films suffer from gauge bands, which are subtle variations in material thickness across the width of the roll. During rewinding, thicker sections create tight, hard areas, while thinner sections form loose, sagging areas on a standard winding shaft. Special converting machinery addresses this issue by utilizing differential friction shafts. These specialized shafts feature independent friction rings that slip slightly under variable tension, ensuring that every individual roll winds at its correct torque profile regardless of local thickness variations.
The slitting process naturally creates narrow waste strips along the outer edges of the master roll, known as edge trim. To prevent this waste material from getting caught in the winding shafts and causing machine jams, specialized equipment integrates high-velocity venturi systems or mechanical trim choppers. These systems continuously capture the trim right at the blade exit and transport it through pneumatic ductwork into collection bins for recycling, keeping the production area clean and allowing the converting machinery to operate continuously without interruption.
