In the fast-paced world of industrial manufacturing, the precision and efficiency of converting raw materials into usable formats are the cornerstones of a successful supply chain. Whether dealing with flexible packaging, industrial textiles, or advanced films, the ability to manage large master rolls with absolute accuracy is non-negotiable. A roll slitter, often integrated within a comprehensive slitter rewinder system, stands as the bridge between bulk raw material production and the specific dimensional requirements of end-user applications.
A roll slitter is a specialized piece of industrial machinery designed to cut a large, wide roll of material into several narrower rolls. This process, often referred to as slitting and rewinding, utilizes high-precision blades or rotary knives to divide substrates like paper, film, foil, or non-woven fabrics while simultaneously winding them onto new cores to ensure they are ready for downstream processing or final sale.
Understanding the mechanics and strategic importance of this equipment is essential for any production manager looking to optimize throughput. In the following sections, we will explore the technical architecture of these machines, their diverse applications across global industries, and how modern advancements in slitter rewinder technology can drastically reduce overhead costs while improving product quality.
Section | Summary |
Key Components of a Roll Slitter | An in-depth look at the mechanical anatomy of the machine, focusing on the unwind station, slitting section, and the dual-shaft rewinding mechanism. |
Main Applications in Industry | Explores how different sectors, from medical packaging to construction, rely on precise slitting for material preparation. |
Reducing Material Waste | Analyzes the economic impact of high-precision cutting and tension control in minimizing scrap and maximizing yield per master roll. |
Different Types of Roll Slitters | A comparative guide between razor, shear, and score slitting methods to help identify the best fit for various material thicknesses. |
Benefits of Modern Slitters | Highlights the advantages of automation, high-speed operation, and digital tension management in modern manufacturing environments. |
Choosing the Right Slitter | A strategic framework for selecting equipment based on material properties, required speed, and specific production volume goals. |
Conclusion | A final synthesis of why investing in a high-quality slitting solution is a foundational step for industrial scaling and quality assurance. |

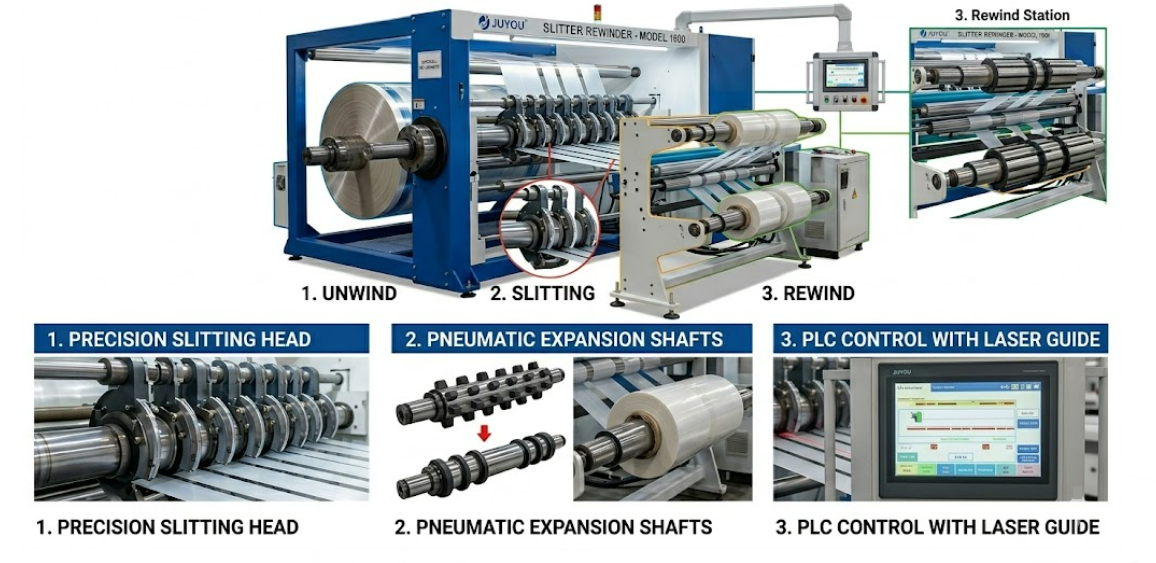

The fundamental architecture of a roll slitter consists of an unwind stand, a sophisticated slitting station housing various blade configurations, and a rewinding unit that manages the tension and alignment of the finished narrower rolls.
The heart of the system is the slitting station. Depending on the material being processed, this section might utilize circular knives, razor blades, or crush cutters. Precision is paramount here; even a fraction of a millimeter in deviation can lead to "telescoping" or uneven edges, which renders the material useless for high-speed automated packaging lines. Modern systems often incorporate laser-guided positioning to ensure the blades are set perfectly according to the job specifications.
The unwind and rewind sections are equally critical for maintaining material integrity. A high-quality slitter rewinder must manage "web tension" throughout the entire cycle. If the tension is too high, the material may stretch or snap; if it is too low, the finished rolls will be soft and unstable. This is where advanced systems, such as the SF-650 Essential Dual-Shaft Slitter Rewinder, excel by using automated sensors to adjust torque in real-time as the roll diameters change.
Furthermore, the drive system serves as the powerhouse of the machine. Utilizing AC or DC motors with variable frequency drives, the machine can ramp up to high speeds while maintaining a smooth start and stop. This prevents "jerking" movements that could cause misalignment. The integration of a user-friendly PLC (Programmable Logic Controller) interface allows operators to input specific dimensions and tension profiles, making the machine adaptable to multiple product lines with minimal downtime during changeovers.
Roll slitters are utilized across a vast spectrum of industries including flexible packaging, automotive manufacturing, medical supplies, and telecommunications to convert bulk substrates into specific widths required for secondary manufacturing processes.
In the flexible packaging industry, the slitter rewinder is the final step before film is sent to the filling machines. Large rolls of printed plastic or laminated foil must be slit to the exact width of the packaging pouch. Any inconsistency in the width can cause the packaging machine to jam, leading to expensive downtime. High-speed slitting ensures that the supply of narrow rolls meets the demand of high-volume consumer goods production.
The medical and electronics sectors also rely heavily on these machines for delicate material handling. In electronics, thin copper foils and insulating films used in batteries and circuit boards require slitters that can handle extremely thin gauges without causing microscopic tears or edge burrs. Similarly, medical-grade non-wovens used for surgical drapes or bandages must be processed in a clean, high-precision environment to ensure safety and functionality.
Flexible Packaging: Converting PET, BOPP, and PE films for food and beverage containers.
Labeling: Slitting self-adhesive paper and synthetic liners for high-speed labeling applicators.
Industrial Textiles: Preparing fiberglass or carbon fiber rolls for composite manufacturing in aerospace and automotive sectors.
Energy Storage: Slitting separator films and metal foils for lithium-ion battery production.
Modern slitting technology reduces material waste by employing high-precision edge-guiding systems and optimized cutting paths that maximize the usable surface area of the master roll while minimizing trim scrap.
The economic impact of material waste is often the difference between a profitable and an unprofitable production run. Edge trim is the most common form of waste; this is the thin strip of material removed from the sides of the master roll to ensure a clean, straight edge. Advanced slitter rewinder units utilize ultrasonic or photoelectric sensors to track the edge of the web. This allows the machine to adjust its position dynamically, reducing the required trim width from centimeters to mere millimeters.
Tension-related waste is another critical factor. When a machine cannot maintain consistent tension, the beginning and end of the roll often become "off-spec." By using a dual-shaft rewinding system, such as the SF-650 Essential Dual-Shaft Slitter Rewinder, manufacturers can ensure that every meter of the roll, from the core to the outer layer, is wound with the same physical properties. This eliminates the need to discard the inner and outer layers of the finished product.
Finally, the reduction of human error through automation plays a major role in waste management. When operators manually set blades, the risk of misalignment is high. Digital blade positioning systems allow for "set it and forget it" accuracy. By storing "recipes" for different materials in the machine's computer, the slitter rewinder can replicate perfect results every time, ensuring that the first meter of the first roll is as perfect as the last.
There are three primary slitting methods used in the industry: razor slitting for thin films, shear slitting for papers and foils, and score (crush) slitting for non-wovens and pressure-sensitive adhesives.
Method | Material Suitability | Best Advantage | Potential Drawback |
Razor Slitting | Thin plastic films, ribbons | Lowest equipment cost, clean cuts | Limited to thin, non-abrasive materials |
Shear Slitting | Paper, foil, thick laminates | High speed, very clean edges | Complex setup with male/female knives |
Score Slitting | Non-wovens, adhesives | Fast setup, versatile | Can create dust, less precision on thin films |
Razor slitting is often the go-to for simple film applications. The material is pulled through stationary razor blades. While economical, the blades dull quickly when used with abrasive materials. In contrast, shear slitting uses a two-part rotary knife system (like a pair of scissors). This is the gold standard for high-speed production of paper and multi-layer laminates because it provides the cleanest edge finish and can handle much thicker substrates without distorting the material.
Score slitting, or crush slitting, involves a circular knife that is pressed against a hardened steel anvil roll. The material is "pinched" until it separates. This method is incredibly fast to set up because the operator doesn't need to align male and female knives. It is particularly effective for materials that are difficult to cut with a clean shear, such as heavy-duty tapes or certain medical fabrics. Choosing a versatile slitter rewinder that allows for interchangeable slitting modules is often the best strategy for a growing business.
Modern roll slitters offer significant advantages in production throughput, including faster cycle times, superior roll density control, and the ability to handle a wider variety of sensitive substrates without damage.
One of the most immediate benefits is the increase in operational speed. Older mechanical slitters might top out at 100 meters per minute, whereas a modern SF-650 Essential Dual-Shaft Slitter Rewinder can operate at significantly higher velocities while maintaining perfect alignment. This throughput increase directly translates to a lower cost-per-unit, allowing manufacturers to be more competitive in the global market.
Consistency is the second major benefit. In the past, the quality of a finished roll was heavily dependent on the skill of the operator. Today, closed-loop tension control systems take the guesswork out of the process. These systems monitor the diameter of the roll and automatically adjust the brake or motor torque. This results in rolls with perfect "density"—not too tight to cause blocking (where layers stick together) and not too loose to cause shifting during transport.
Reduced Downtime: Quick-change shafts and automatic blade positioning speed up transitions between jobs.
Safety: Modern machines feature light curtains, emergency stops, and enclosed cutting areas to protect operators.
Data Logging: Integration with ERP systems allows manufacturers to track material usage and machine efficiency in real-time.
Versatility: The ability to process everything from 12-micron film to 500-gsm paperboard on a single machine.
Choosing the right roll slitter requires a comprehensive evaluation of your material's physical properties, your required output volume, the desired level of automation, and the specific finishing requirements of your customers.
The first step in the selection process is defining the material range. A machine designed for rigid PVC may not be suitable for ultra-thin aluminum foil. You must consider the "web width" and the maximum weight of the master rolls your facility can handle. If you are dealing with high-volume, standard-sized orders, a dedicated high-speed slitter rewinder is ideal. However, if your business specializes in small-batch, custom-width orders, you should prioritize a machine with rapid setup features and easy-to-change slitting heads.
Budgeting for a slitter rewinder should include not just the purchase price, but the total cost of ownership. This includes energy consumption, the cost of replacement blades, and the availability of technical support. Machines like the SF-650 Essential Dual-Shaft Slitter Rewinder are designed with durability in mind, using standardized components that are easy to maintain, which reduces long-term operational costs.
Material Compatibility: Can it handle the thinnest and thickest substrates in your catalog?
Rewind Diameter: Does the finished roll size meet your customers' specifications?
Slitting Precision: What is the tolerance for width deviation (e.g., +/- 0.1mm)?
Safety Compliance: Does the machine meet international safety standards (CE/UL)?
Future Scalability: Can the machine be upgraded with automatic unloading or labeling systems later?
Investing in a high-performance roll slitter is not merely an equipment upgrade; it is a strategic decision that enhances product quality, reduces environmental impact through waste reduction, and provides the agility needed to respond to changing market demands.
As we have explored, the role of the slitter rewinder extends far beyond simple cutting. It is the gatekeeper of quality for the final product. By ensuring precise dimensions and perfect winding tension, these machines protect the integrity of the material and ensure that it performs flawlessly in the hands of the end user. Whether you are producing food packaging or high-tech industrial components, the precision of your slitting process will define your reputation in the industry.
In an era where sustainability and efficiency are paramount, the ability to minimize waste and maximize throughput is a significant competitive advantage. By choosing a machine that balances robust mechanical engineering with intelligent digital control, manufacturers can future-proof their production lines. The evolution of slitting technology continues to push the boundaries of what is possible, making now the perfect time to evaluate how a modern slitting solution can transform your manufacturing capabilities and drive your business toward long-term profitability.
