Types of Slitting Explained

You see a few main slitting methods in factories. These are razor, shear, score, crush, and laser. Slitting is cutting big rolls of thin, bendy stuff into smaller strips. It needs to be very exact. A slitter rewinder machine helps you work faster. It also helps you waste less material. Many businesses use this technology. It is important for textiles, packaging, and energy. The usual materials are paper, films, nonwovens, foils, and composites.

Tip: Slitter rewinder machines cut thin film, foil, plastic, and paper fast and well.

Key Takeaways

• Slitting helps cut big rolls of material into smaller strips. This makes them easier to use in many industries.

• Picking the right slitting method, like razor, shear, or crush slitting, is very important. It helps you get clean cuts and less waste.

• Slitter rewinder machines make work faster by cutting automatically. They also help save material and keep the quality the same.

• Knowing what your material needs, like its type and thickness, helps you choose the best slitting machine for your job.

• Taking care of slitter rewinder machines is important. You should check the blades and tension systems often. This keeps the machine working well and lasting longer.

Slitting Overview

What Is Slitting?

Slitting happens a lot in factories with big rolls. It means cutting a master roll into smaller strips. A special machine with sharp blades does this job. The machine cuts the material to the right width. In converting industries, slitting helps make big rolls of film, paper, or foil into strips. These strips are easier to use. You can use them for packaging, labels, or other things. The slitting machine makes sure every cut is neat and exact. This step matters because most products need small pieces, not one huge roll.

Note: Slitting turns one big, heavy roll into many smaller rolls. This makes it easier to move and work with the material.

Purpose in Manufacturing

Slitting is very important in many factories. When you use slitting, you make materials fit your needs. You do not waste big sheets or rolls. You only cut what you need. This saves money and resources. Slitting also helps you work faster. You start with strips that are the right size. This means less waiting and fewer mistakes. Many industries need slitting to keep things running well. For example, packaging companies need the right width for wrappers and labels. Energy companies use slitting to get films and composites ready for batteries or insulation.

• Benefits of slitting in manufacturing:

• Cuts down on waste by using only what you need

• Makes production faster and more efficient

• Helps with handling and storing materials

• Keeps product quality the same every time

Slitting is easy to understand, but it really helps you manage materials and run your factory better.

Slitter Rewinder Machine

How Slitter Rewinder Machines Work

A slitter rewinder machine takes big rolls and makes them smaller. The way it works is simple but works really well. First, you put the master roll on the unwind stand. The machine uses a tension control system to keep the material moving smoothly. Sensors watch the edges so the material stays straight.

Then, the slitting part starts. Sharp blades or knives cut the wide material into strips. You can move the blades to make different sizes. This step is important for getting clean cuts. After cutting, the strips go to the rewinding section. Each strip wraps onto its own core. This makes many small rolls from one big roll.

A modern slitter rewinder, like ones from Juyou, has automatic tension control and edge alignment. It also has safety systems. These features help you get good rolls with less waste. You can use a simple panel to control everything. Many machines have safety covers and emergency stops to keep you safe.

Tip: Always check the tension and blade settings before you start. This helps you avoid mistakes and keeps your rolls neat.

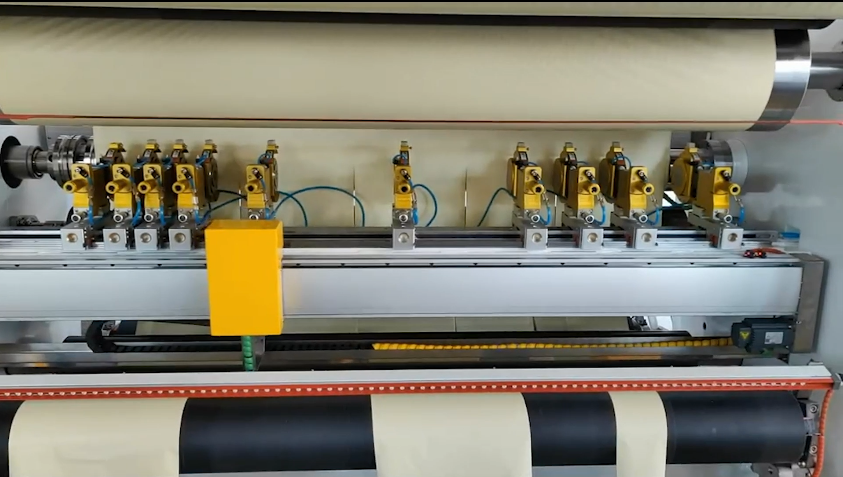

Main components of a slitter rewinder machine:

• Unwind stands hold the master roll

• Tension control system keeps feeding smooth

• Slitting units have blades you can adjust

• Rewind units collect the finished rolls

• Control panels make operation easy

• Safety features protect the operator

Applications of Slitter Rewinder Machines

You see slitter rewinder machines in many industries. They help you work with paper, film, foil, and nonwoven fabrics. These machines are important in packaging, printing, and making labels. You also find them in hygiene, medical, and energy fields.

A paper slitter and rewinder is great for making rolls for printing, packaging, and labels. You can use it to cut kraft paper, linerboard, or printing papers. In packaging, a slitter rewinder machine helps you get films and foils ready for wrapping and sealing. For hygiene products, you use a paper slitter and rewinder for nonwoven fabrics. The energy field uses slitter rewinder machines to make films and composites for batteries and insulation.

Note: Picking the right slitter rewinder machine saves time, cuts waste, and makes your products better.

Slitting Methods

When you use a slitting machine, you must pick the right method. Each slitting method works in its own way. Some methods are better for certain jobs. Here are the main types you will find in factories.

Razor Slitting

Razor slitting uses sharp razor blades to cut materials. The blades are set in a row across the web. As the material moves, the blades slice it into strips. This method is best for thin and bendy materials.

Tip: Razor slitting is simple and cheap. It does not work well for thick or hard materials.

Here are some good and bad things about razor slitting:

You often use razor slitting for flexible packaging, labels, and thin films. Here are some materials and what they are used for:

You will see razor slitting in jobs like flexible packaging, label and tape making, paper and tissue, foil and metals, and electronics. If you use a paper slitter and rewinder for thin films or fine papers, razor slitting helps you work fast with little setup.

Shear Slitting

Shear slitting works like scissors. The machine uses two round blades. One blade is on top and one is on the bottom. The material goes between the blades. They cut it with a clean edge.

• Shear slitting is very accurate and works fast.

• It does not make much heat, so you can run the machine longer.

• You get less dust and fewer rough edges.

• The blades last longer if you set them up right.

You use shear slitting for many materials:

• Coated and uncoated paper

• Thick plastic films

• Multi-layer laminates

• Labelstock

• Technical textiles

• Cardboard and corrugated fiberboard

• Thin plastic films

• Metal foils

• Nonwoven materials

• Adhesive tapes

• Rubber or rubberized materials

• Laminates

Note: If you want clean, straight edges, shear slitting is a good choice. Many factories use this method to get high-quality rolls for printing and packaging.

Score Slitting

Score slitting is also called crush slitting. It uses a dull knife pressed against a hard surface. The knife crushes the material to make the cut. This method is good for tough or thick materials.

Here are some good and bad things about score slitting:

You will find score slitting in paper, foil, film, textiles, and packaging. Common products are adhesive tapes, complex laminates, and nonwoven webs. If you use a paper slitter and rewinder for tapes or nonwoven fabrics, score slitting gives you a non-sticky edge and quick results.

Crush Slitting

Crush slitting uses a rotary knife pressed on a hard anvil. The knife crushes and cuts the material. This method is best for soft, thick, or squishy materials like foam, rubber, and some fabrics.

Crush slitting is cheap and good for jobs where you do not need a perfect edge. You use it for thick, tough, non-woven materials, fabrics, laminates, and paper. If you do not mind a rough edge, this method saves time and money.

Tip: Use crush slitting for thick or soft materials. It is common for hygiene products, insulation, and some packaging.

Laser Slitting

Laser slitting uses a laser beam to melt and cut the material. The laser moves along the material and makes very exact cuts. Laser slitting does not use blades or touch the material.

Laser slitting has many good points:

• Very accurate and clean cuts

• Fast cutting speeds

• No need to change or sharpen blades

• Good for tricky shapes and patterns

• Easy to use with computers

But there are some bad points too:

• Only works for some material thicknesses

• Can make toxic fumes

• Uses a lot of power

• Costs a lot to buy the machine

• Needs skilled workers and regular care

Note: Laser slitting is best for jobs that need very fine cuts. It is used for electronics, special packaging, or medical products. If you use a slitting machine for expensive or sensitive materials, laser slitting gives you the best results.

Choosing Slitting Machines

Material Considerations

When picking a slitting machine, think about what you want to cut. Every material acts in its own way when you slit it. There are some key things you should check:

1. Material type: Choose a machine that works with your material. For example, use a paper slitting machine for paper. Use a slitter rewinder for plastic film. This helps you get neat cuts. It also keeps the material from tearing or bending.

2. Material thickness: Thin materials need a machine that cuts very carefully. Thick materials need a stronger machine to make smooth cuts.

Tip: Always try your material on the machine before a big job. This helps you waste less and get the best results.

Application Scenarios

Slitting machines are used in many industries. Each industry uses them for different jobs. Here are some common examples:

A paper slitter and rewinder is very helpful in packaging and printing. You can use a paper slitting machine to make rolls for labels, wrappers, and insulation for energy products.

Comparison Table

You should compare slitting methods to find the best one for your job. Look at how fast they work, how exact they are, and what materials they handle best.

When picking a paper slitter and rewinder, check the smallest slit width, roll size, and how fast it works. Make sure your slitting machine matches your material and how much you need to make.

You can tell that slitting methods are not the same. The table below helps you see how razor, shear, and crush slitting are different:

You need to pick the right slitting type for your job. This makes your work better and wastes less material. It also helps you get higher quality. To find the best slitter rewinder machine, you should do these things:

1. Find out what kind of material you have and how thick it is.

2. Choose the slitting method that fits your job.

3. Pick machines that are safe and easy to use.

4. Think about how the machine will help you in the long run, not just the cost.

Making smart choices with your slitter rewinder helps you work better and waste less.

FAQ

What is a slitter rewinder?

A slitter rewinder is a machine that cuts large rolls of material into smaller rolls. You use it to make materials like paper, film, or foil easier to handle and use in production.

How do you choose the right slitting method?

You should look at your material type and thickness. Razor slitting works best for thin films. Shear slitting gives clean edges on paper and laminates. Crush slitting handles thick or soft materials.

Can a slitter rewinder handle different materials?

Yes, you can use a slitter rewinder for many materials. These include paper, plastic films, foils, nonwovens, and laminates. You need to set the machine for each material to get the best results.

Why does edge quality matter in slitting?

Edge quality affects how your finished rolls perform. Clean edges help prevent jams and waste. If you want high-quality products, you need to pick the right slitting method for your material.

How do you maintain a slitter rewinder?

You should check and clean the blades often. Make sure the tension system works well. Always follow the machine’s safety steps. Regular care helps your slitter rewinder last longer and work better.
